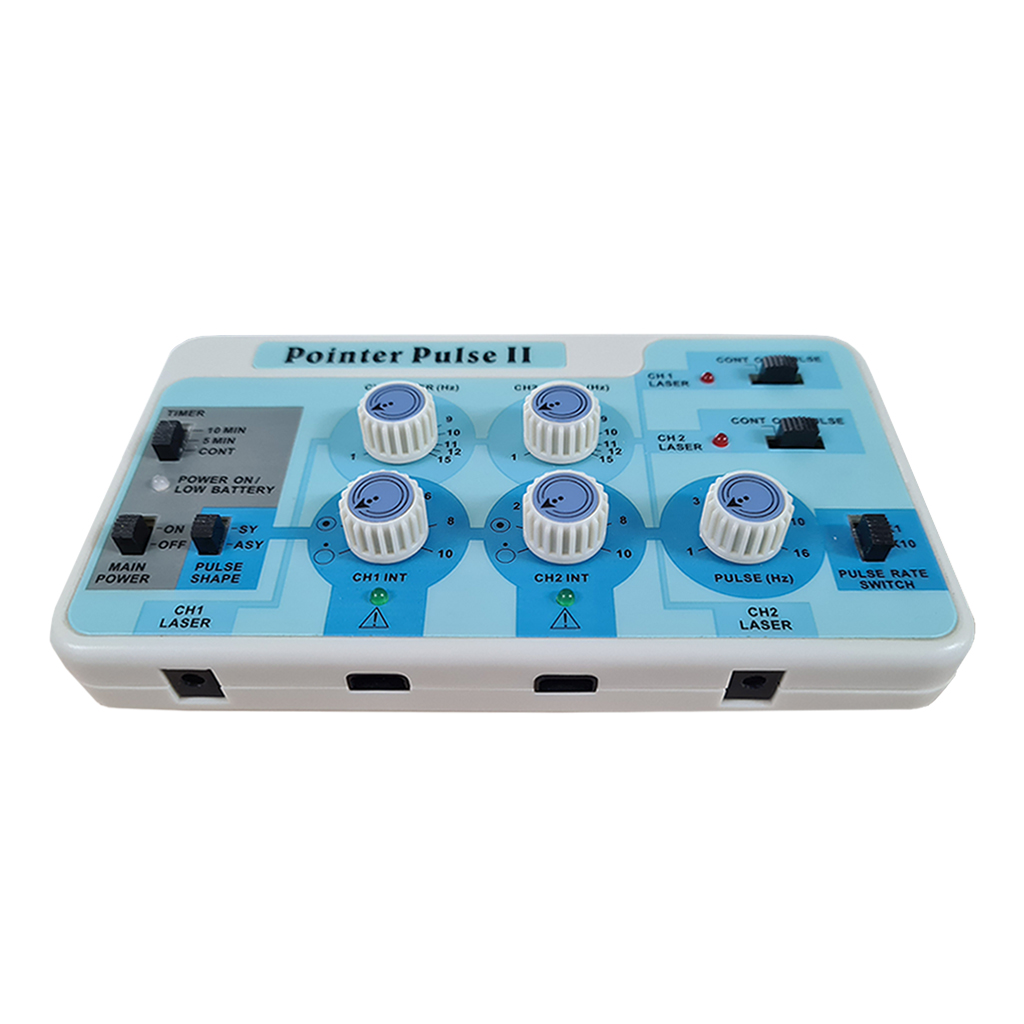

Dual probe and dual-mode laser device (continuous and 5 Hz pulsed adjustable), with T.E.N.S. Feature.
Battery Operated, portable and convenient to use everywhere. The device can also be used with an 9V DC adaptor.
With the use of laser and/or T.E.N.S. acupuncture becomes a painless process, readily acceptable to everyone both young and old.The Pointer Pulse II is a device which provides a combination two outputs of Laser and Electrical stimulation.
Laser and Transcutaneous Electrical Nerve Stimulation (TENS) devices are used for the symptomatic relief of chronic (long term) intractable pain and as an adjunctive treatment in the management of post surgical traumatic pain problems.Laser therapy is also used as a substitute to invasive acupuncture treatment, involving directly irradiating key acupuncture points on the surface of the skin. Laser therapy can also be used for the symptomatic relief of chronic (long term) intractable pain and as an adjunctive treatment in the management of post surgical traumatic pain Problems.
Dual output channels - both with a combination of laser as well as electrical stimulation.
Continuous Or 1 - 15 Hz pulsed laser stimulation adds the effectiveness of therapy to certain diseases.
Dental and sports medication
Painless and without sensation of numbness
Harmless, no tissue damage
Complete sterility, no-cross infection
No heat, no adverse effect
User-friendly design and operation
Channel : 2 Channels
Output Current : 0-80 ma
Pulse Rate : x1 (1 - 16 Hz)
x10 (20 -160 Hz)
Pulse Width : x1 (260 Â£gS)
: x1 (260 Â£gS)
Pulse Shapes : Asymmetric Modified, Rectangular
Laser Pulse : Continuous, Or 1-15 Hz, Adjustable
Laser Wavelength : 650 nm
Max Power Output : <5 mw
Timer : Cont, 5 Min, 10 Min
Power Source : Alkaline Battery LR 6 or DC 9V Adaptor
Dc Power Jack : 6.3mm x 2mm Centre Pin
Dimensions : 160 x 88 x 50mm
Weight : 230 gm
Weight : 230 gm
Output Parameters Are Across A 500 Ohm Resistance
WHY CHOOSE 650 nm WAVELENGHT VISIBLE LASER?
Laser beams within this range pass through water and hemoglobin, and penetrates deeply into the body without destroying the tissues. The visibility of laser beam enables the user to make sure it is applied to the appropriate treatment point.
WHY USE PULSED LASER OF 1 to 15 Hz?
Based on the manufacturers past experience, they have discovered that therapeutic effects can be enhanced in the Pointer Pulse II by allowing for a pulsation between 1- 15 Hz.
