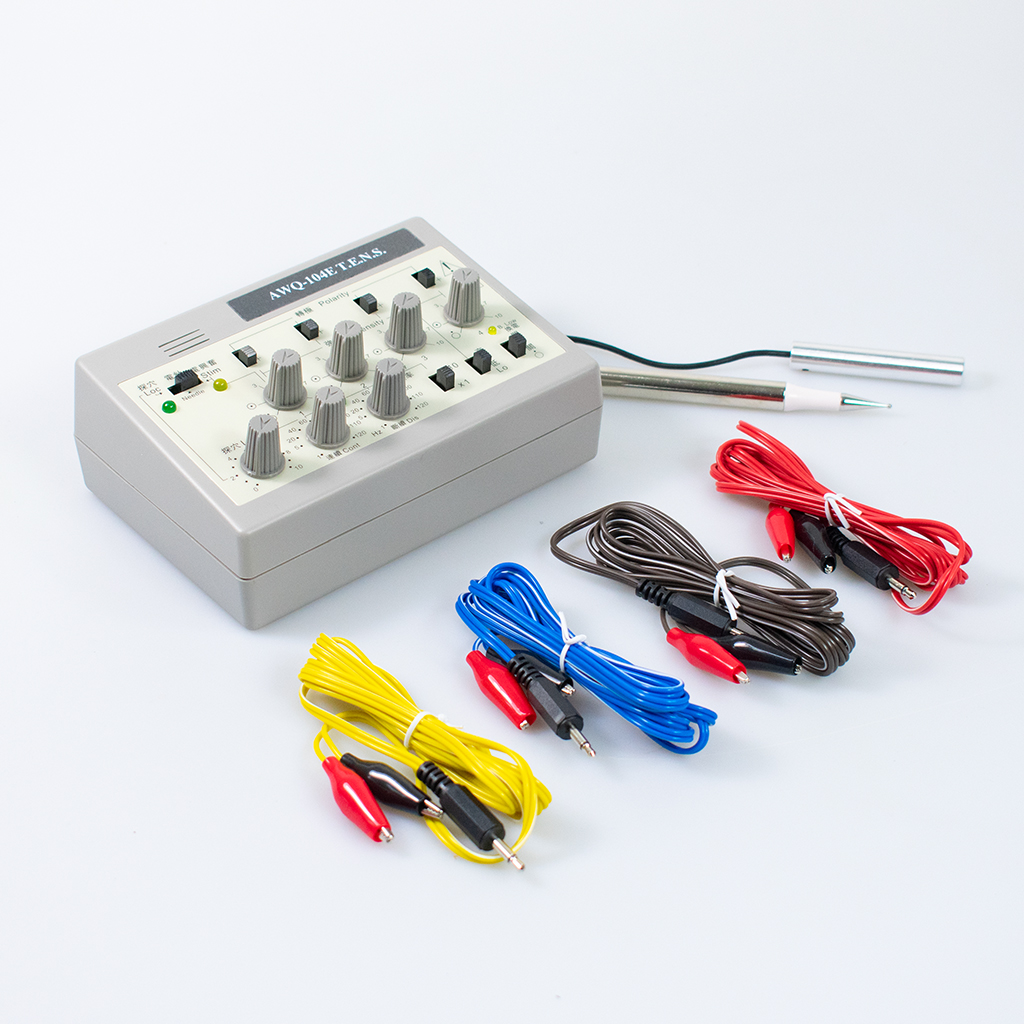

AWQ-104E - Acupuncture Stimulator/Locator

Item No. STAP0001
The AWQ-104 is a classic electro stim unit that has stood the test of time. It has all the essential functions you need for an effective treatment. Including 4 channels, 3 adjustable wave forms, frequency range of 1-1200 Hz with a max output of 40mA and runs on a single 9V battery. Extra functions
Read full description
This product cannot be ordered at the moment.
Description
The AWQ-104 is a classic electro stim unit that has stood the test of time. It has all the essential functions you need for an effective treatment. Including 4 channels, 3 adjustable wave forms, frequency range of 1-1200 Hz with a max output of 40mA and runs on a single 9V battery.

Extra functions of the unit include a point locator and stimulator. You can change probes function between locator and stimulator by a switch on the control panel. When locator is selected on the control panel the probe can be used to search for acupuncture points, when switched to stimulator the probe can be used to deliver stimulation to the skin or through an acupuncture needle.

The control panel also features polarity switch for each channel, allowing you to change the direction of electrons and area of stimulation. Removing the need for swapping clips or having multiple needles one area. You can use this to save time and deliver a balanced treatment.

You’ll like this unit if you want all the basic settings of a locator and stimulator with the ability to swap polarities.

For a look at the manual and a full list of specifications please contact our friendly staff.

Channels4 (+ 1 probe channel)
Intensity0-40 mA (milliamp)
Frequency1–1200 Hz
Waves (3) Continuous, Dense / Disperse, Discontinuous
Additional FeaturesPoint detector and Stimulator
Timer-









Suitable for use with:
Alligator Clip Lead with 3.5 mm Jack (yellow)  STLE0001
Alligator Clip Lead with 3.5mm Jack (blue) STLE0002
3.5 MM Pin Type Lead STLE0003 (with extension types STLE0009, STLE0014, STEL0010)
Specifications
Name AWQ-104E - Acupuncture Stimulator/Locator
