ES 160 Acupuncture Stimulator
Item No.
STAP0007
The ES 160 is the premiere electro acupuncture device from the Japanese manufacturer ITO. It comes with all the fine-tuning capabilities you would expect from a top tier unit and is the only device to feature the unique Ryodoraku diagnostic measurement system. Ryodoraku is a unique diagnostic and
Read full description
Description
The ES 160 is the premiere electro acupuncture device from the Japanese manufacturer ITO. It comes with all the fine-tuning capabilities you would expect from a top tier unit and is the only device to feature the unique Ryodoraku diagnostic measurement system.
Ryodoraku is a unique diagnostic and treatment system. The specialised attachment and recording program allow you to measure meridian strength and administer a Ryodoraku treatment based on the findings. Ryodoraku manual included.

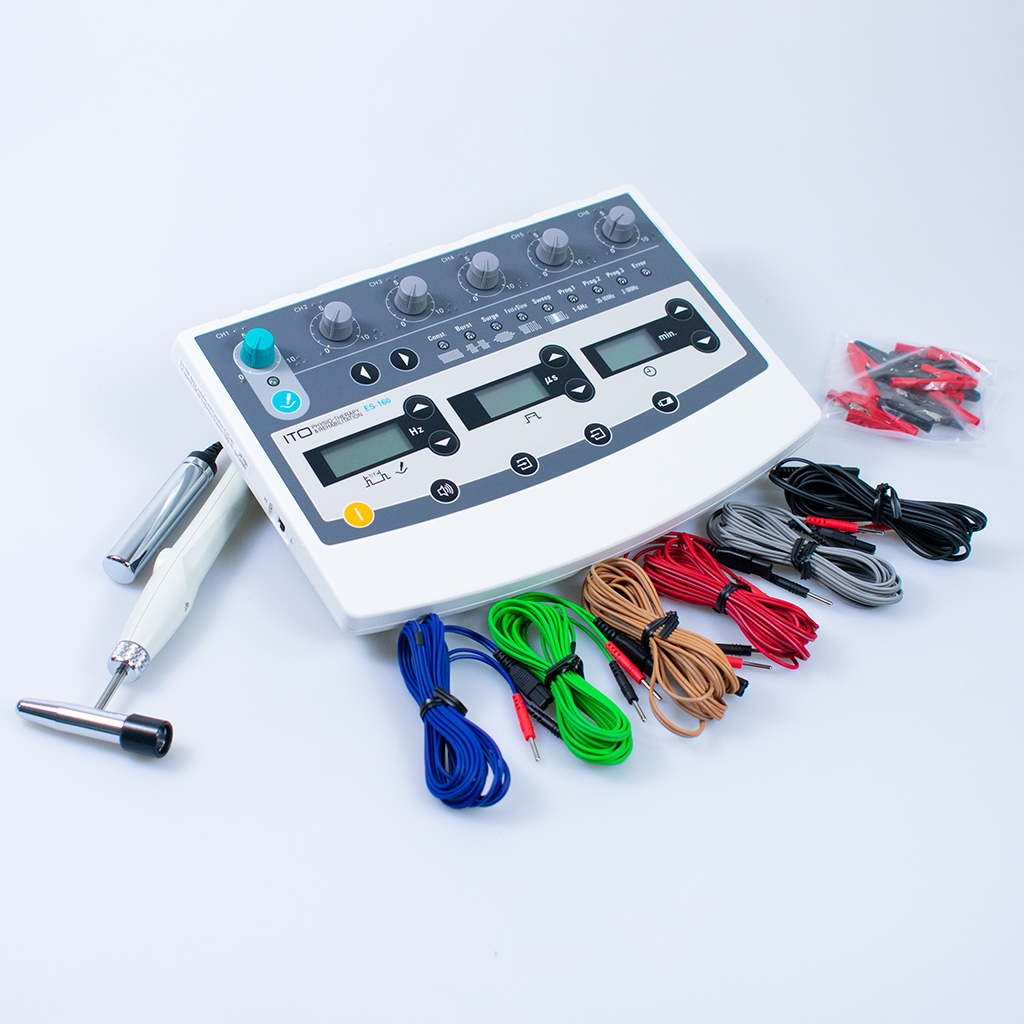

This stylishly compact unit features 6 channels, stimulating up to 12 acupuncture points simultaneously. Intensity is controlled by reliable turn style knobs with a maximum output of 32 mA.
Digital display allows for accurate readings of frequency (0.5-500 Hz), phase duration, and treatment time.
Comes complete with 8 preprogramed wave forms including Constant, Burst, Surge, Fast+Slow, Sweep, Random prog. 1, 2, &3. (Random programs cycle through wave forms at low, high, and medium frequency’s respectively).
For a look at the manual and a full list of specifications please contact our friendly staff.
Made in Japan.
Specifications
| Channels | 6 |
| Intensity | 0-32 mA (milliamp) |
| Frequency | 0.5 Hz, 0.7 Hz, 1–500 Hz |
| Waves | (6) Constant, Burst, Surge, Fast+Slow, Sweep, Random prog. 1, 2, &3 |
| Attachment | Point detector and Stimulator (0-64 mA) Ryodoraku measurement and treatment |
| Timer | Yes |
Power source: Four(4) alkaline LR14 battery
Ryodoraku measurement range: 0-200
Voltage setting: 6,12 or 21 volt
Number of channels: 6, independently controllable
Pulse shape: Symmetric, bi-phasic square pulse
Frequency: 0.3-500Hz
Phase duration: 50-400µs, adjustable
Amplitude:
• Stimulation by 'search and stimulate' probe: 0-48mA(peak)
• Electro-acupuncture:
High: 0-32mA± 25%, Low: 0-16mA± 25%(peak)
Times: 0-60minutes
Output modes:
(1) Constant (2) Burst (3) Surge (4) Fast + Slow
(5) Sweep (6) Random prog.1 (7) Random prog.2
(8) Random prog.3
Number of memory setting:
• Memory for Ryodoraku measurement: 24
• Memory settings for previous treatment parameters: 5, one for each mode(random modes excluded)
• Free programmable memory settings: 5
Dimensions: 239(W) x 174(L) x 41(H) mm
Weight: Approx. 600g(without batteries)
Suitable for use with:
ES 160 Stimulator Leads STLE0004 (with STLE0008, STLE0009)
Specifications
| Name | ES 160 Acupuncture Stimulator |
